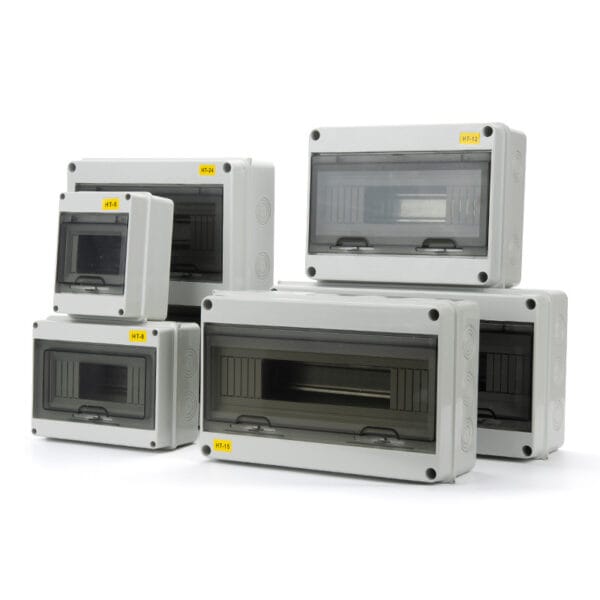

HT 2-24 Way Circuit Breaker Distribution Protection Box
● Series: HT-（Number of circuits）
● Color: Gray
● UV Resistant: Yes
● NEMA Rating: –
● IP Rating: IP66
● Material: Base-ABS ，Cover-Polycarbonate
● Application: Outdoor/Indoor
One circuit = 18mm (approximately 0.71 inches)
FEATURES OF PRODUCT

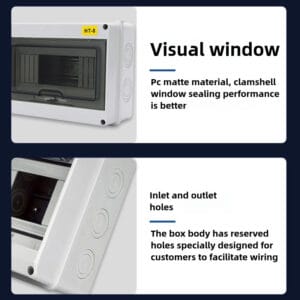

- 【Product Overview】The HT breaker distribution protection box features a compact size, a transparent window for easy internal inspection, streamlined circuit management, and simple installation.(DIN rail required)
- 【Robust and durable】Made of high quality PC+ABS alloy material.
- 【Waterproof IP66】Protects against most harmful dust and prevents rain from entering, effectively protecting the circuit breaker.Impact resistance up to IK08
- 【Easy Installation】The circuit breaker box can be easily installed and very convenient to use, just need a few steps to mount it on your wall
- 【Wide range of uses】Suitable for outdoor installation, such as connecting solar energy, car charging posts, etc. Also suitable for indoor, such as home, workshop, hotel, shopping mall, charging station, etc
- 【Packing】1PCS Power Distribution Protection Box; 4PCS x Screws
- 【External Mounting Style】Screw-In

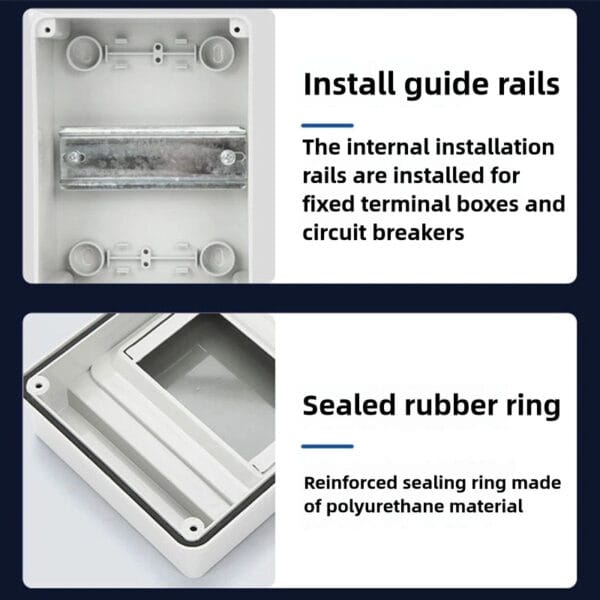

- 【Internal Mounting Option】 Internal mounting din rail.
SPECIFICATION DATA
| No | Order number (AE) | Approximate External Dimensions | Approximate Internal Dimensions |
|---|---|---|---|

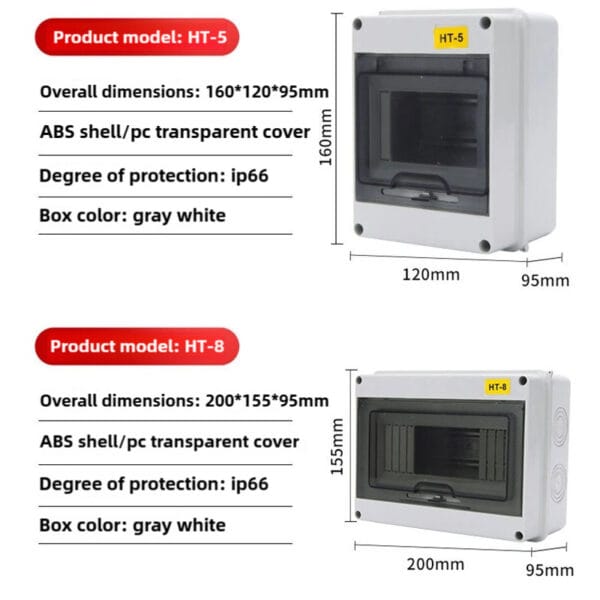

| 1 | HT-2 | 120x90x60mm 4.7x3.5x2.4 | - - | 2 | HT-3 | 159x84x90mm 6.3*3.3*3.5in | - - | 3 | HT-5 | 120x160x95mm 4.7*6.3*3.7in | - - | 4 | HT-8 | 200x155x95mm 7.9x6.1x3.7in | - - | 5 | HT-12 | 250x195x110mm 9.8x7.7x4.3in | - - | 6 | HT-15 | 310x195x110mm 12.2x7.7x4.3in | - - | 7 | HT-18 | 365x195x110mm 14.4*7.7*4.3in | - - | 8 | HT-24 (Two rows) | 360x280x110mm 14.2*11*4.3in | - - |
Models & Drawings：Please contact our staff to obtain the relevant drawings.
