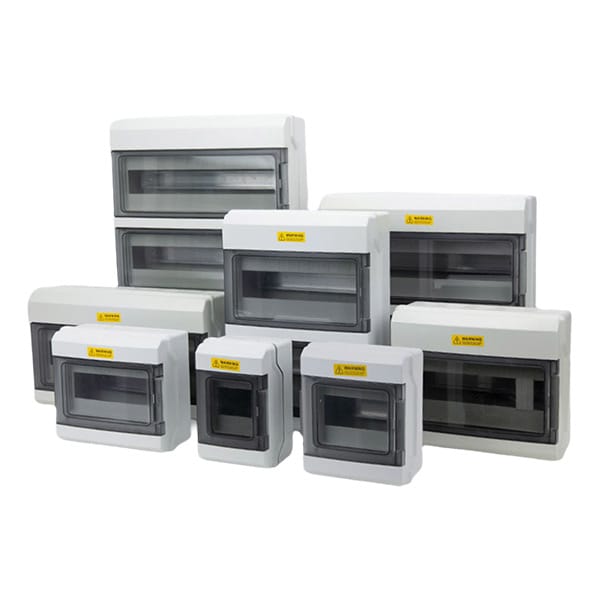

HPC 4-54 Way Outdoor Circuit Breaker Box
● Series: HPC-（Number of circuits）
● Color: Gray
● UV Resistant: Yes
● NEMA Rating: –
● IP Rating: IP65
● Material: Base-ABS ，Cover-Polycarbonate
● Application: Outdoor/Indoor
One circuit = 18mm (approximately 0.71 inches)
FEATURES OF PRODUCT

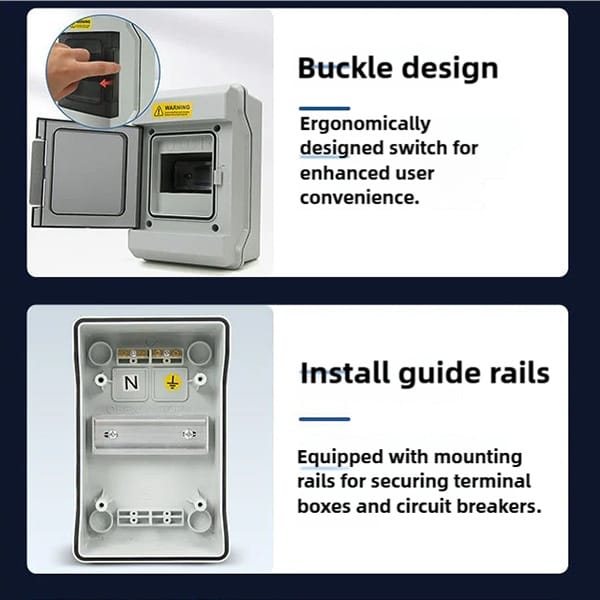

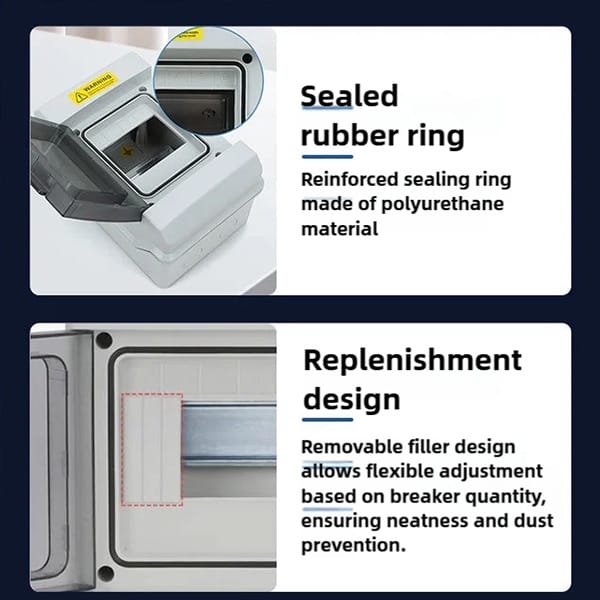

- 【Product Overview】The HPC Outdoor Circuit Breaker Box features a compact size, a transparent window for easy internal inspection, streamlined circuit management, removable filler design allows flexible adjustment based on breaker quantity, ensuring neatness and dust prevention and simple installation.(DIN rail required)
- 【Robust and durable】Made of high quality PC+ABS alloy material.
- 【Waterproof IP65】Protects against most harmful dust and prevents rain from entering, effectively protecting the circuit breaker.Impact resistance up to IK08
- 【Easy Installation】The circuit breaker box can be easily installed and very convenient to use, just need a few steps to mount it on your wall
- 【Wide range of uses】Suitable for outdoor installation, such as connecting solar energy, car charging posts, etc. Also suitable for indoor, such as home, workshop, hotel, shopping mall, charging station, etc
- 【Packing】1 PC Outdoor Power Circuit Breaker Box; 4PCS x Screws
- 【External Mounting Style】Screw-In
- 【Internal Mounting Option】 Internal mounting din rail.
SPECIFICATION DATA
| No | Order number (AE) | Approximate External Dimensions | Approximate Internal Dimensions |
|---|---|---|---|

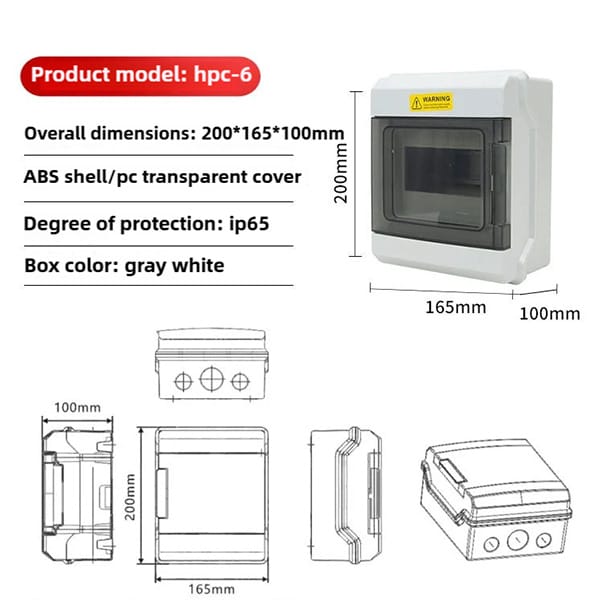

| 1 | HPC-4 | 107x212x92mm 4.2x8.3x3.6 | - - | 2 | HPC-6 | 165x200x100mm 6.5*7.9*3.9in | - - | 3 | HPC-9 | 219x200x100mm 8.6*7.9*3.9in | - - | 4 | HPC-12 | 273x230x110mm 10.7x9.1x4.3in | - - | 5 | HPC-18 | 381x230x110mm 15x9.1x4.3in | - - | 6 | HPC-24 (Two rows) | 273x380x110mm 10.7x15x4.3in | - - | 7 | HPC-36 (Two rows) | 381x380x110mm 15*15*4.3in | - - | 8 | HPC-54 (Three rows) | 370x518x110mm 14.6*20.4*4.3in | - - |
Models & Drawings：Please contact our staff to obtain the relevant drawings.
