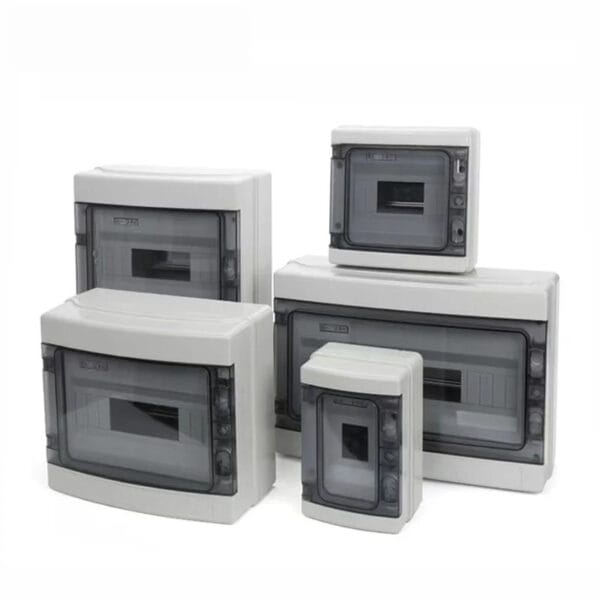

HA 4-36 Way Circuit electrical breaker box
● Series: HA-（Number of circuits）
● Color: Gray
● UV Resistant: Yes
● NEMA Rating: –
● IP Rating: IP66
● Material: Base-ABS ，Cover-Polycarbonate
● Application: Outdoor/Indoor
One circuit = 18mm (approximately 0.71 inches)
FEATURES OF PRODUCT
- 【Product Overview】The HA electrical breaker box features a compact size, a transparent window for easy internal inspection, streamlined circuit management, and simple installation.(DIN rail required)
- 【Robust and durable】Made of high quality PC+ABS alloy material.
- 【Waterproof IP66】Protects against most harmful dust and prevents rain from entering, effectively protecting the circuit breaker.Impact resistance up to IK08
- 【Easy Installation】The circuit breaker box can be easily installed and very convenient to use, just need a few steps to mount it on your wall
- 【Wide range of uses】Suitable for outdoor installation, such as connecting solar energy, car charging posts, etc. Also suitable for indoor, such as home, workshop, hotel, shopping mall, charging station, etc
- 【Packing】1PCS Power electrical breaker box; 4PCS x Screws
- 【External Mounting Style】Screw-In
- 【Internal Mounting Option】 Internal mounting din rail.
SPECIFICATION DATA

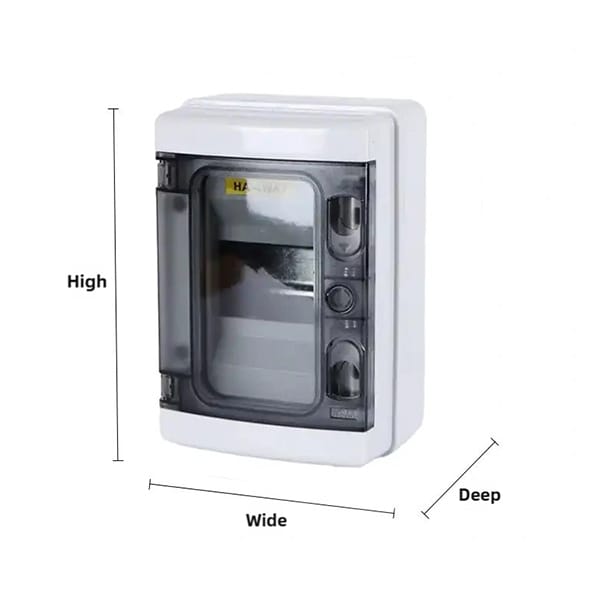

| No | Order number (AE) | Approximate External Dimensions | Approximate Internal Dimensions |
|---|---|---|---|

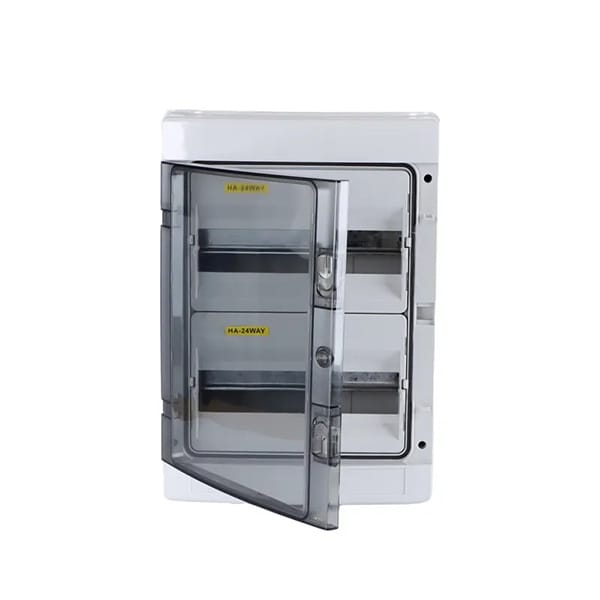

| 1 | HA-4 | 208x136x101mm 8.2x5.4x4 | - - | 2 | HA-8 | 208x213x93mm 8.2*8.4*3.7in | - - | 3 | HA-12 | 258x295x138mm 10.2*11.6*5.4in | - - | 4 | HA-18 | 283x402x138mm 10.2x11.6.x5.4in | - - | 5 | HA-24 (Two rows) | 417x292x134mm 16.4x11.5x5.3in | - - | 6 | HA-36 (Two rows) | 570x300x140mm 22.4x11.8x5.5in | - - |
Models & Drawings：Please contact our staff to obtain the relevant drawings.
