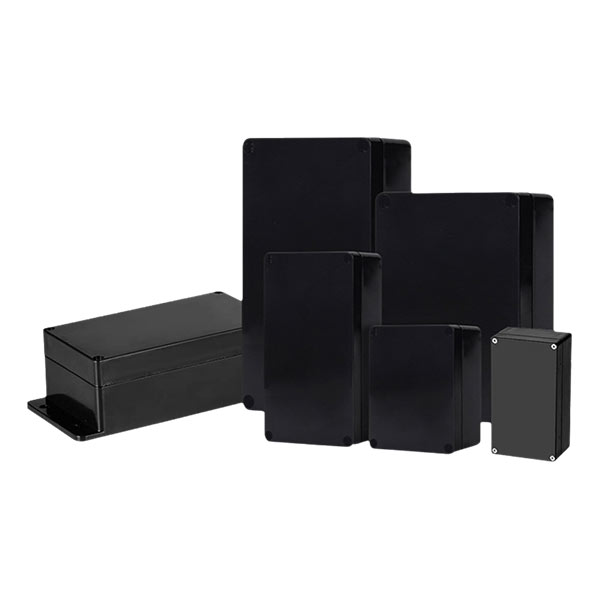

FF Flanged-Surface Mount junction boxes，ABS Plastic，Gray/Black
● Series: FF
● Color: Gray/Black
● UV Resistant: Yes
● NEMA Rating: –
● IP Rating: IP67
● Material: ABS
● Application: Outdoor/Indoor
FEATURES OF PRODUCT

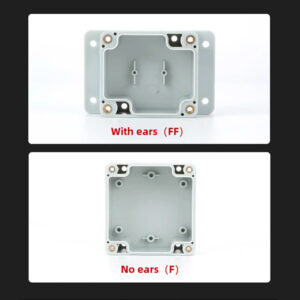

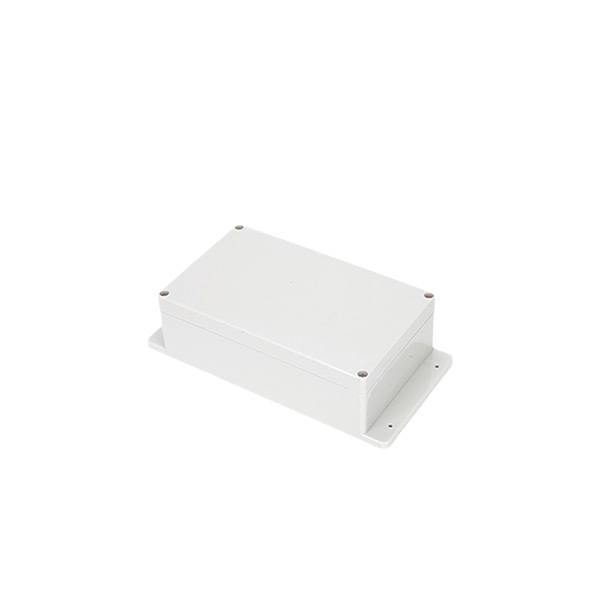

- 【Product Overview】FF junction boxes feature flanges with mounting holes for easy screw fixation to surfaces, no recessed installation needed.

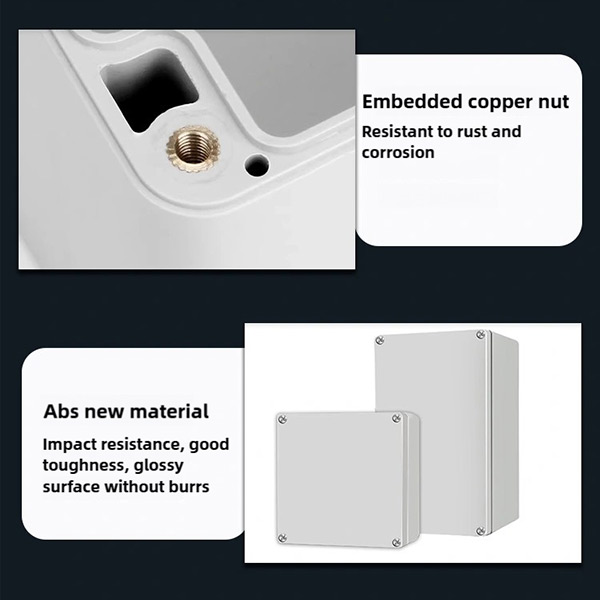

- 【Durability】 Made from new ABS material, offering anti-static and corrosion-resistant properties.
- 【Waterproof IP67】 Prevents dust and rain from entering, effectively protecting electrical components.
- 【Versatile Applications】 Ideal for both indoor and outdoor environments, widely used in electrical systems, communication networks, fire equipment, power infrastructure, railways, and construction sites.
- 【Packaging】 1PC junction box; 4PCS screws.
- 【External Mounting】 Screw-fixed installation.

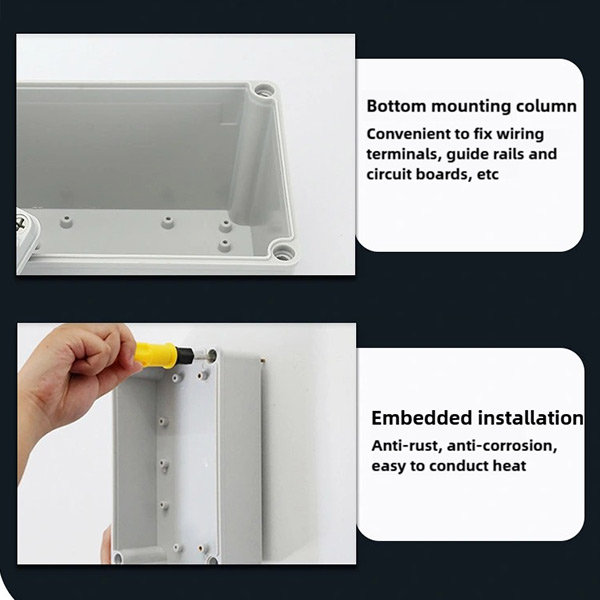

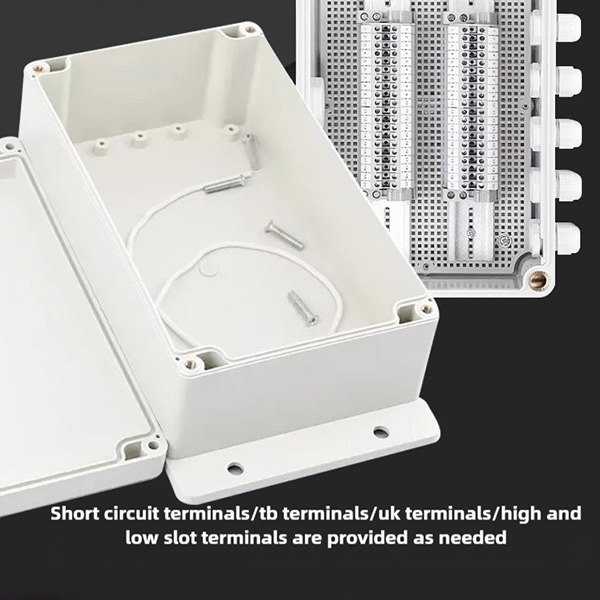

- 【Internal Mounting Options】 Terminal blocks, DIN rails, circuit boards, internal mounting plates (sold separately)
SPECIFICATION DATA
| No | Order number (AE) | Approximate External Dimensions | Approximate Internal Dimensions |
|---|---|---|---|
| 1 | FF1 | 63x58x35mm 2.5x2.3x1.4in | - - |
| 2 | FF2 | 64x58x46mm 2.5x2.3x1.8in | - - |
| 3 | FF3 | 83x58x33mm 3.3x2.3x1.3in | - - |
| 4 | FF4 | 83x81x56mm 3.3x3.2x2.2in | - - |
| 5 | FF5 | 100x68x40mm 3.9x2.7x1.6in | - - |
| 6 | FF6 | 100x68x50mm 3.9x2.7x2.0in | - - |
| 7 | FF7 | 115x85x35mm 4.5x3.3x1.4in | - - |
| 8 | FF8 | 115x90x55mm 4.5x3.5x2.2in | - - |
| 9 | FF9 | 115x90x68mm 4.5x3.5x2.7in | - - |
| 10 | FF10 | 120x81x65mm 4.7x3.2x2.6in | - - |
| 11 | FF11 | 120x120x60mm 4.7x4.7x2.4in | - - |
| 12 | FF12 | 120x120x90mm 4.7x4.7x3.5in | - - |
| 13 | FF13 | 125x90x40mm 4.9x3.5x1.6in | - - |
| 14 | FF14 | 120x100x52mm 4.7x3.9x2.0in | - - |
| 15 | FF15 | 150x100x40mm 5.9x3.9x1.6in | - - |
| 16 | FF16 | 150x100x55mm 5.9x3.9x2.2in | - - |
| 17 | FF17 | 150x150x60mm 5.9x5.9x2.4in | - - |
| 18 | FF18 | 158x90x46mm 6.2x3.5x1.8in | - - |
| 19 | FF19 | 158x90x60mm 6.2x3.5x2.4in | - - |
| 20 | FF20 | 158x90x64mm 6.2x3.5x2.5in | - - |
| 21 | FF21 | 158x90x79mm 6.2x3.5x3.1in | - - |
| 22 | FF22 | 160x110x90mm 6.3x4.3x3.5in | - - |
| 23 | FF23 | 160x160x90mm 6.3x6.3x3.5in | - - |
| 24 | FF24 | 192x188x70mm 7.6x7.4x2.8in | - - |

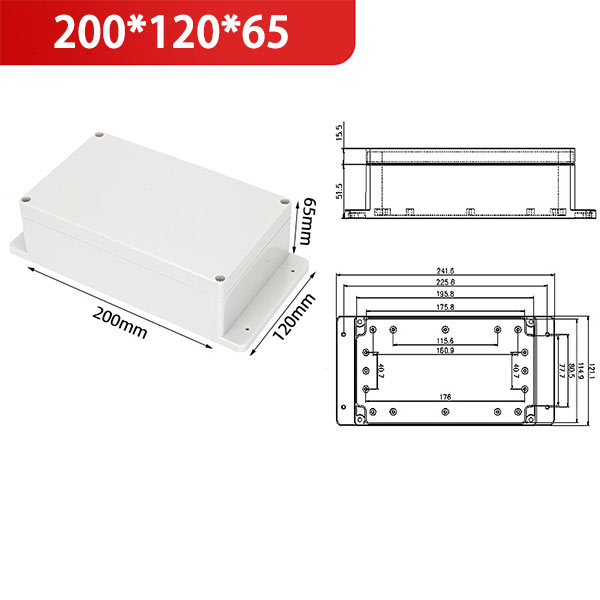

| 25 | FF25 | 200x120x67mm 7.9x4.7x2.6in | - - |
| 26 | FF26 | 200x120x75mm 7.9x4.7x3.0in | - - |
| 27 | FF27 | 200x120x113mm 7.9x4.7x4.4in | - - |
| 28 | FF28 | 230x150x87mm 9.1x5.9x3.4in | - - |
| 29 | FF29 | 263x182x95mm 10.4x7.2x3.7in | - - |
| 30 | FF30 | 263x182x125mm 10.4x7.2x4.9in | - - |
| 31 | FF31 | 320x240x110mm 12.6x9.4x4.3in | - - |
| 32 | FF32 | 320x240x140mm 12.6x9.4x5.5in | - - |
| 33 | FF33 | 320x240x155mm 12.6x9.4x6.1in | - - |
Models & Drawings：Please contact our staff to obtain the relevant drawings.
