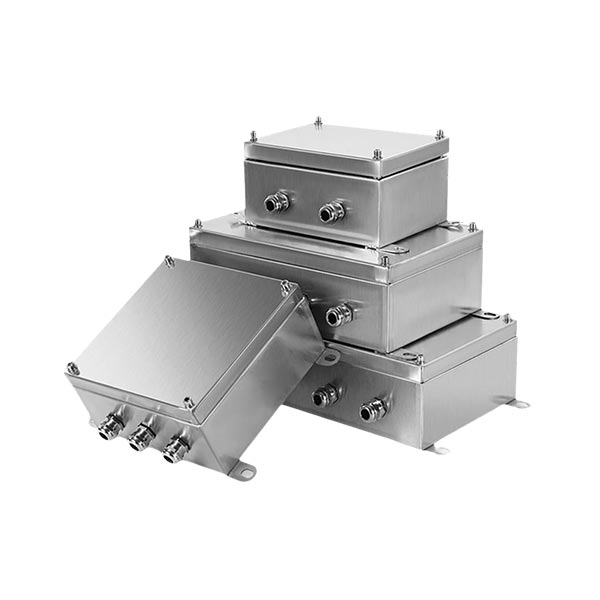

DZX01 Terminal Junction Box,Stainless Steel
- Series:DZX01
- Color:Slivery White
- UV Resistant:Yes
- NEMA Rating:-
- IP Rating:IP66
- Material:SS201/304/316
- Application:Indoor/Outdoor
FEATURES OF PRODUCT
【Durable & Sturdy】 The terminal junction box is made of high-quality stainless steel (201/304/316), featuring durability, aesthetic appeal, corrosion resistance, and excellent heat dissipation.

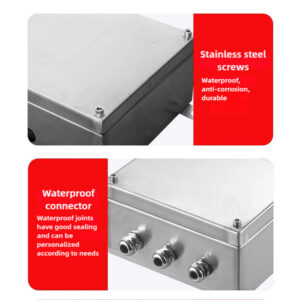

【Waterproof IP66】 Prevents most harmful dust and rain from entering, effectively protecting the internal terminals.
【Easy Installation】 Simple to install, very convenient to use, and can be mounted on the wall in just a few steps.
【Wide Application】 Suitable for industrial, construction, and outdoor facilities, offering reliable cable protection and easy operation.
【Packaging】 1PC Terminal Junction Box.
【External Mounting】 Screw fixation.

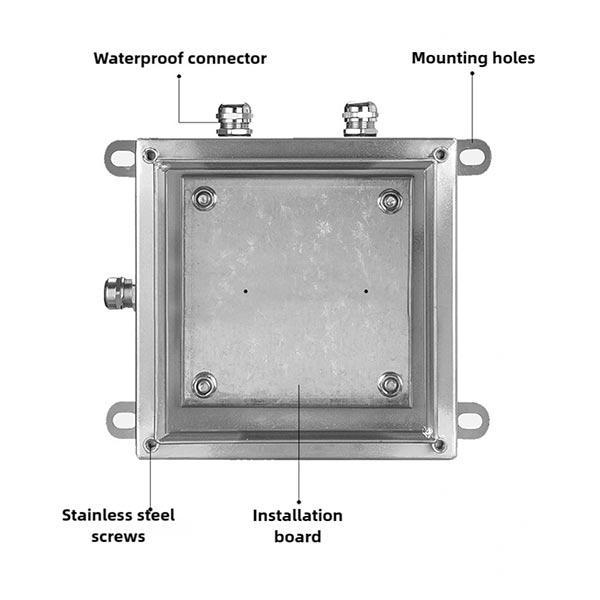

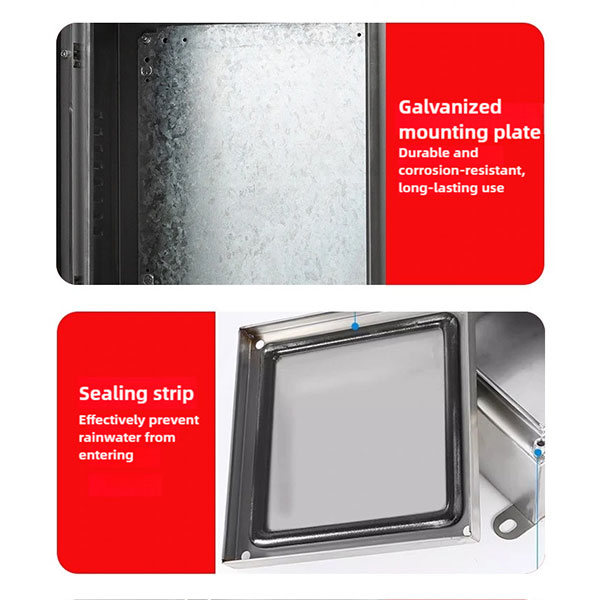

【Internal Mounting Options】 Internal mounting plate.
SPECIFICATION DATA
| No | Order number (AE) | Approximate External Dimensions | Approximate Internal Dimensions |
|---|---|---|---|
| 1 | DZX01-1 | 150x150x100mm 5.9x5.9x3.9in | - - |
| 2 | DZX01-2 | 200x150x100mm 7.9x5.9x3.9in | - - |
| 3 | DZX01-3 | 200x200x100mm 7.9x7.9x3.9in | - - |
| 4 | DZX01-4 | 300x200x100mm 11.8x7.9x3.9in | - - |
| 5 | DZX01-5 | 400x200x100mm 15.7x7.9x3.9in | - - |
Models & Drawings：Please contact our staff to obtain the relevant drawings.
