CWFS IP68 waterproof extension cord box with Potting Design
● Series:CWFS
● Color:Clear
● UV Resistant:-
● NEMA Rating:-
● IP Rating: IP68
● Material:ABS
● Application:Outdoor
FEATURES OF PRODUCT
- 【Sturdy and Durable】Made of high quality ABS material, insulated and flame retardant.
- 【Waterproof IP68】Prevents most harmful dust and prevents rainwater from entering, effectively protects the wiring.
- 【Easy to Install】The junction box is very easy to use, just connect the wires in the electrical box and inject glue, 15 minutes fast curing.
- 【Wide Use] Suitable for outdoor installation, can be used in water and soil.

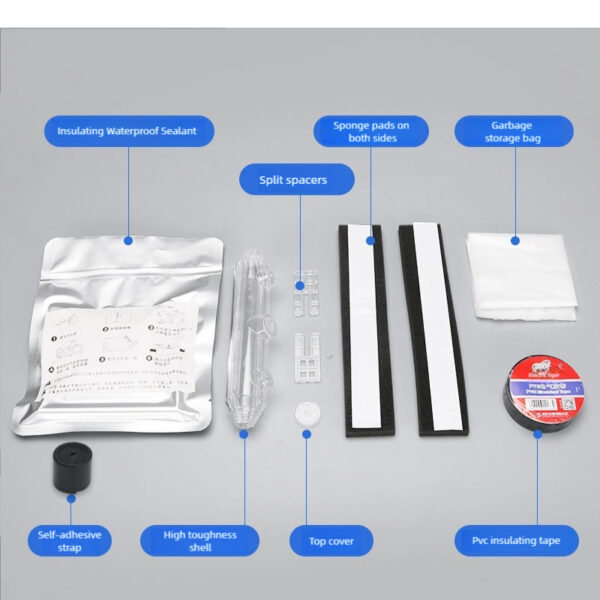

- 【Packaging】1PC junction box;1PC insulating glue;1PC insulating tape;2PCS x sponge strip.

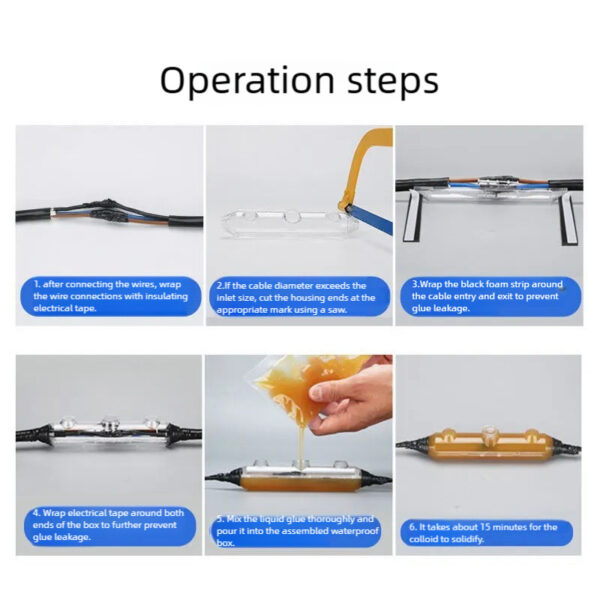

Extension cord box Operation steps
After connecting the wires, wrap each connection with electrical insulating tape.
If the cable diameter exceeds the housing inlet, cut along the appropriate mark on both ends using a saw.
Wrap the black foam strip around the cable entries to prevent glue leakage.
Wrap electrical tape around both ends of the box for extra leak protection.

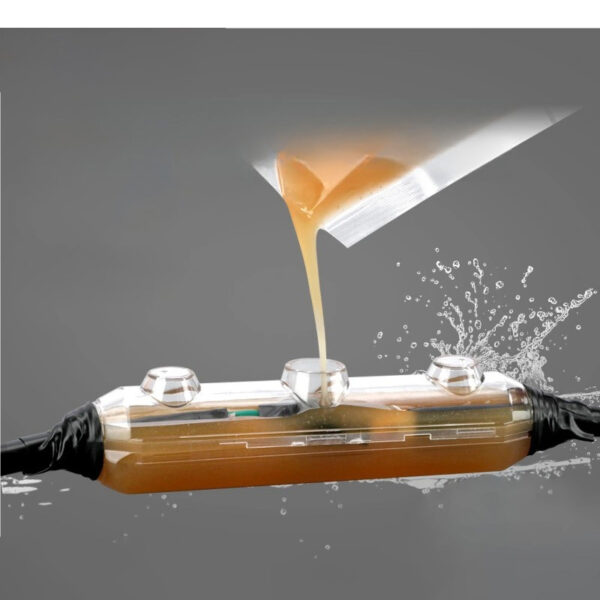

Mix the liquid glue thoroughly and pour it into the assembled waterproof box.
The glue takes about 15 minutes to cure.
SPECIFICATION DATA
| No | Order number (AE) | Cable O.D. | Approximate External Dimensions |
|---|---|---|---|
| 1 | CWFS-1 | 17mm 0.67in | 150x35x31mm 5.91x1.38x1.22in |
| 2 | CWFS-2 | 8-26mm 0.31-1.02in | 185x40x45mm 7.28x1.57x1.77in |
| 3 | CWFS-3 | 14-32mm 0.55-1.26in | 270x55x55mm 10.63x2.17x2.17in |
| 4 | CWFS-4 | 23-39mm 0.91-1.54in | 355x65x60mm 13.98x2.56x2.36in |
| 5 | CWFS-5 | 28-50mm 1.10-1.97in | 400x90x70mm 15.75x3.54x2.76in |
Models & Drawings：Please contact our staff to obtain the relevant drawings.
