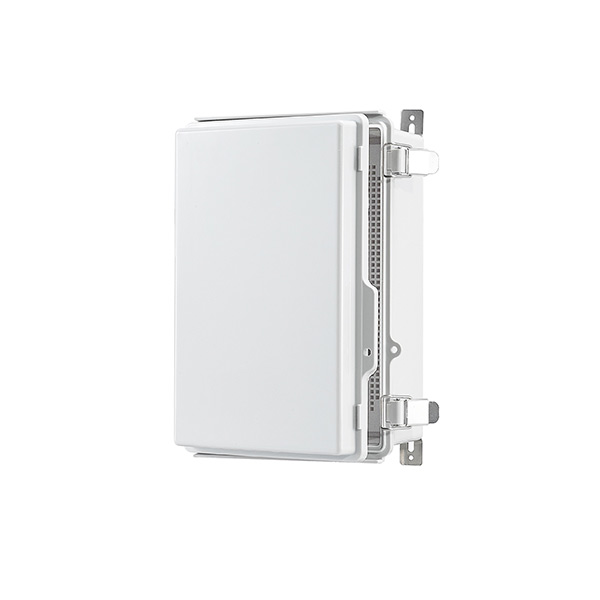

BG Steel Hasp outside electrical enclosure box
● Series:BG
● Color:Gray
● UV Resistant:Yes
● NEMA Rating:-
● IP Rating:IP67
● Material:ABS/Polycarbonate
● Application:Indoor/Outdoor
FEATURES OF PRODUCT

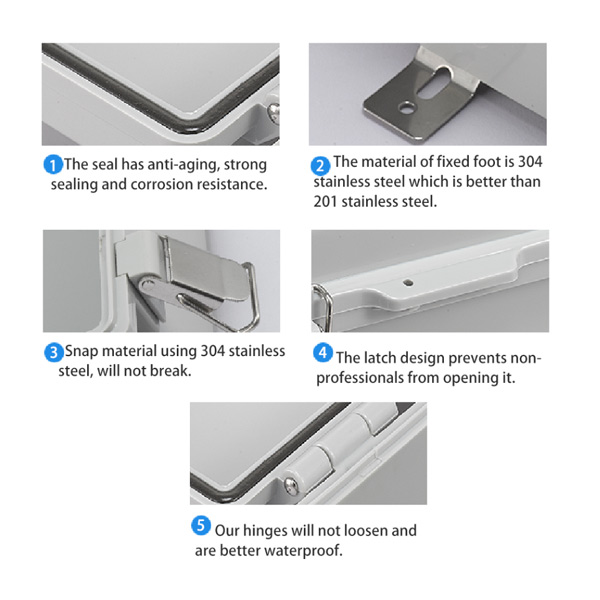

- 【Product Overview】 BG Series electrical enclosure box offers a variety of specifications to meet different electrical wiring needs, featuring stainless steel hasps that are both durable and visually appealing.
- 【Durability】 Made from high-quality ABS material, providing antistatic and corrosion-resistant properties.
- 【Waterproof IP67】 Prevents dust and water ingress, effectively protecting electrical components.
- 【Wide Application】 Our junction boxes are ideal for both indoor and outdoor environments, widely used in electrical systems, communication networks, fire equipment, power infrastructure, railways, and construction sites.
- 【Packaging】 1PC Enclosure Box; 4 feet and 4 screws

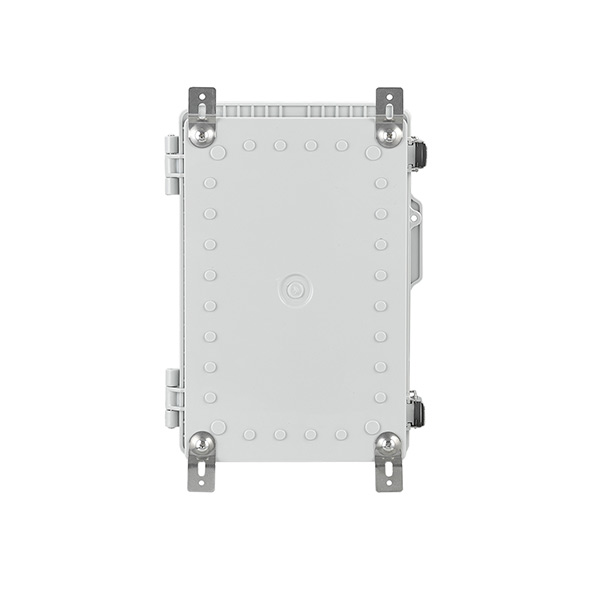

- 【External Mounting】 Feet; Pole Mount Kit
- 【Internal Mounting Options】 Terminal blocks, rails, circuit boards, internal mounting plates (sold separately)
SPECIFICATION DATA
| No | Order number (AE) | Approximate External Dimensions | Approximate Internal Dimensions |
|---|---|---|---|
| 1 | BG-1 | 120x90x70mm 4.7x3.5x2.8in | - - |
| 2 | BG-2 | 150x100x70mm 5.9x3.9x2.8in | - - |
| 3 | BG-3 | 150x100x90mm 5.9x3.9x3.5in | - - |
| 4 | BG-4 | 150x150x90mm 5.9x5.9x3.5in | - - |
| 5 | BG-5 | 210x110x75mm 8.3x4.3x3.0in | - - |
| 6 | BG-6 | 210x160x100mm 8.3x6.3x3.9in | - - |
| 7 | BG-7 | 220x170x110mm 8.7x6.7x4.3in | - - |
| 8 | BG-8 | 260x110x75mm 10.2x4.3x3.0in | - - |
| 9 | BG-9 | 260x160x100mm 10.2x6.3x3.9in | - - |
| 10 | BG-10 | 290x190x140mm 11.4x7.5x5.5in | - - |
| 11 | BG-11 | 300x200x130mm 11.8x7.9x5.1in | - - |
| 12 | BG-12 | 300x300x180mm 11.8x11.8x7.1in | - - |
| 13 | BG-13 | 330x330x130mm 13.0x13.0x5.1in | - - |
| 14 | BG-14 | 350x250x150mm 13.8x9.8x5.9in | - - |
| 15 | BG-15 | 380x280x130mm 15.0x11.0x5.1in | - - |
| 16 | BG-16 | 390x290x160mm 15.4x11.4x6.3in | - - |
| 17 | BG-17 | 400x300x180mm 15.7x11.8x7.1in | - - |
| 18 | BG-18 | 450x350x200mm 17.7x13.8x7.9in | - - |
| 19 | BG-19 | 500x400x200mm 19.7x15.7x7.9in | - - |
| 20 | BG-20 | 630x530x250mm 24.8x20.9x9.8in | - - |
Models & Drawings：Please contact our staff to obtain the relevant drawings.
