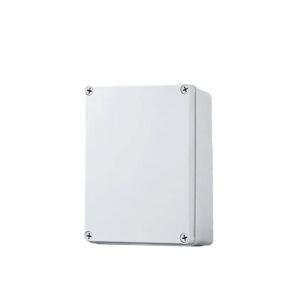

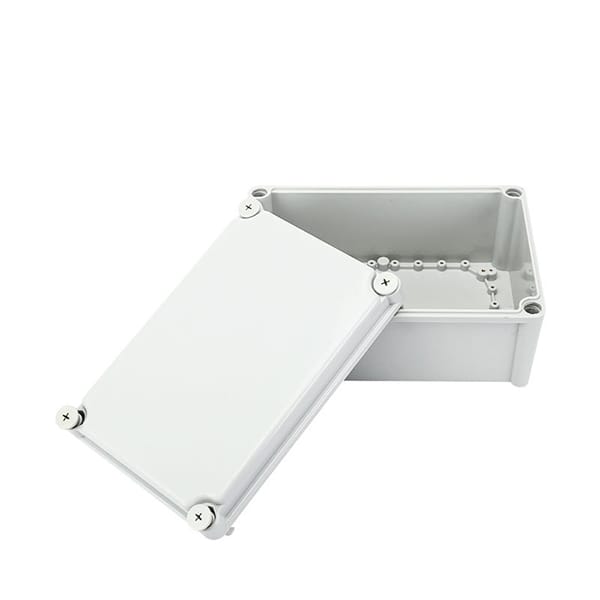

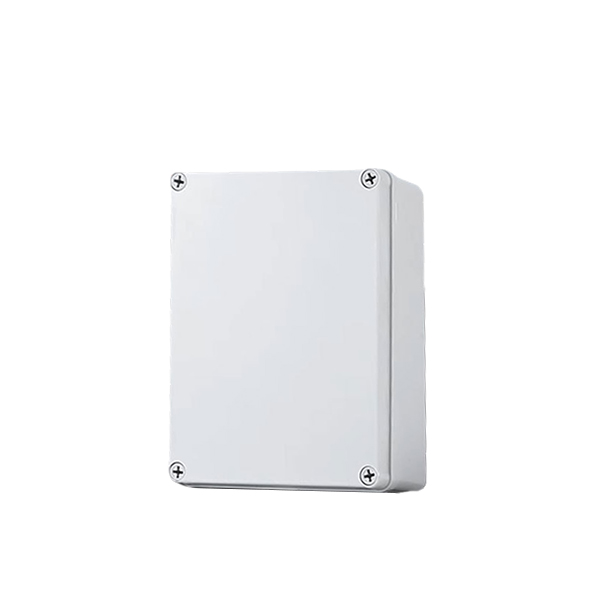

AG Waterproof Junction Box，ABS Plastic，Gray/Black
● Series: AG
● Color: Gray/Black
● UV Resistant: Yes
● NEMA Rating: –
● IP Rating: IP67
● Material: Base-ABS
● Application: Outdoor/Indoor
FEATURES OF PRODUCT

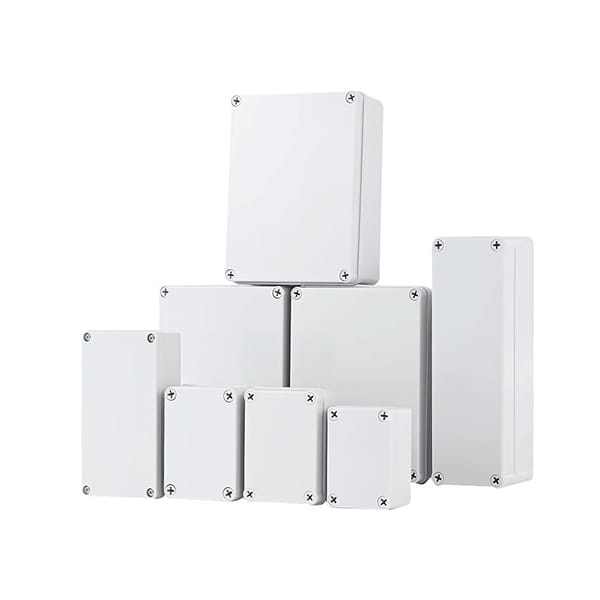

- 【Product Overview】 AG Series Waterproof Junction Box offers a variety of specifications to meet different electrical wiring needs, equipped with corrosion-resistant plastic screws.
- 【Durability】 Made from high-quality ABS material, providing antistatic and corrosion-resistant properties.
- 【Waterproof IP67】 Prevents dust and water ingress, effectively protecting electrical components.
- 【Wide Application】 Our junction boxes are ideal for both indoor and outdoor environments, widely used in electrical systems, communication networks, fire equipment, power infrastructure, railways, and construction sites.

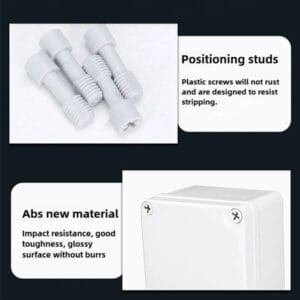

- 【Packaging】 1PC Enclosure Box; 4PCS Plastic Screws
- 【External Mounting】 Screw fixation

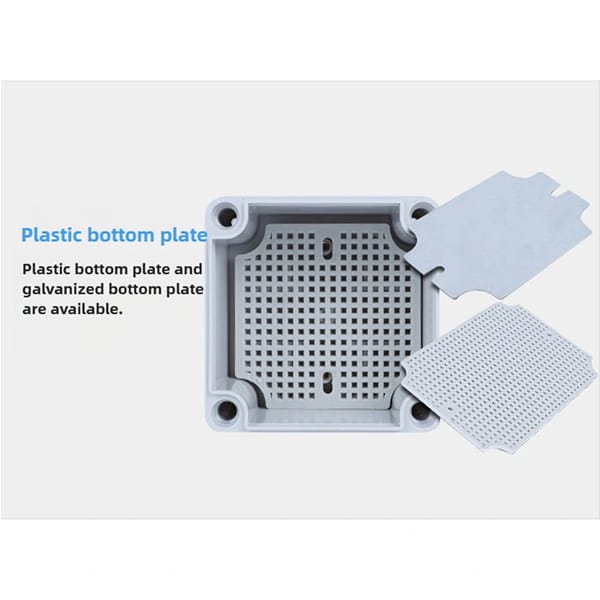

- 【Internal Mounting Options】 Terminal blocks, rails, circuit boards, internal mounting plates (sold separately)
SPECIFICATION DATA
| No | Order number (AE) | Approximate External Dimensions | Approximate Internal Dimensions |
|---|---|---|---|
| 1 | AG-1 | 65x55x50mm 2.6x2.2x2.0in | - - |
| 2 | AG-2 | 95x65x55mm 3.7x2.6x2.2in | - - |
| 3 | AG-3 | 100x100x75mm 3.9x3.9x2.9in | - - |
| 4 | AG-4 | 110x80x30mm 4.3x3.1x1.2in | - - |
| 5 | AG-5 | 110x80x45mm 4.3x3.1x1.8in | - - |
| 6 | AG-6 | 110x80x85mm 4.3x3.1x3.3in | - - |
| 7 | AG-7 | 125x125x75mm 4.9x4.9x3.0in | - - |
| 8 | AG-8 | 125x125x100mm 4.9x4.9x3.9in | - - |
| 9 | AG-9 | 130x80x85mm 5.1x3.1x3.3in | - - |
| 10 | AG-10 | 130x80x85mm 5.1x3.1x3.3in | - - |
| 11 | AG-11 | 170x125x55mm 6.7x4.9x2.2in | - - |
| 12 | AG-12 | 170x125x100mm 6.7x4.9x3.9in | - - |
| 13 | AG-13 | 170x140x95mm 6.7x5.5x3.7in | - - |
| 14 | AG-14 | 175x125x75mm 6.9x4.9x3.0in | - - |
| 15 | AG-15 | 175x175x100mm 6.9x6.9x3.9in | - - |
| 16 | AG-16 | 180x80x70mm 7.1x3.1x2.8in | - - |
| 17 | AG-17 | 200x150x75mm 7.9x5.9x3.0in | - - |
| 18 | AG-18 | 200x150x100mm 7.9x5.9x3.9in | - - |
| 19 | AG-19 | 200x150x130mm 7.9x5.9x5.1in | - - |
| 20 | AG-20 | 200x200x95mm 7.9x7.9x3.7in | - - |
| 21 | AG-21 | 200x200x130mm 7.9x7.9x5.1in | - - |
| 22 | AG-22 | 250x80x85mm 9.8x3.1x3.3in | - - |
| 23 | AG-23 | 250x80x85mm 9.8x3.1x3.3in | - - |
| 24 | AG-24 | 250x150x100mm 9.8x5.9x3.9in | - - |
| 25 | AG-25 | 250x150x130mm 9.8x5.9x5.1in | - - |
| 26 | AG-26 | 280x190x130mm 11.0x7.5x5.1in | - - |
| 27 | AG-27 | 280x190x180mm 11.0x7.5x7.1in | - - |
| 28 | AG-28 | 280x280x130mm 11.0x11.0x5.1in | - - |
| 29 | AG-29 | 280x280x180mm 11.0x11.0x7.1in | - - |
| 30 | AG-30 | 340x280x130mm 13.4x11.0x5.1in | - - |
| 31 | AG-31 | 340x280x180mm 13.4x11.0x7.1in | - - |
| 32 | AG-32 | 380x190x130mm 15.0x7.5x5.1in | - - |
| 33 | AG-33 | 380x190x180mm 15.0x7.5x7.1in | - - |
| 34 | AG-34 | 380x280x130mm 15.0x11.0x5.1in | - - |
| 35 | AG-35 | 380x280x180mm 15.0x11.0x7.1in | - - |
Models & Drawings：Please contact our staff to obtain the relevant drawings.
